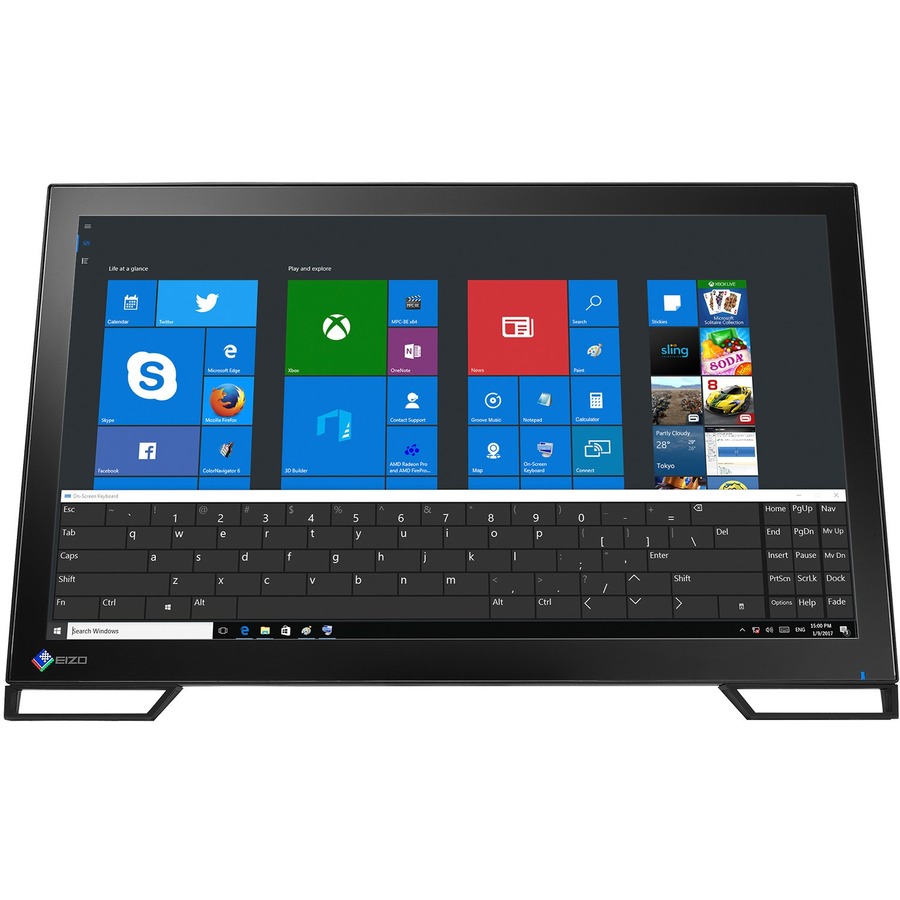

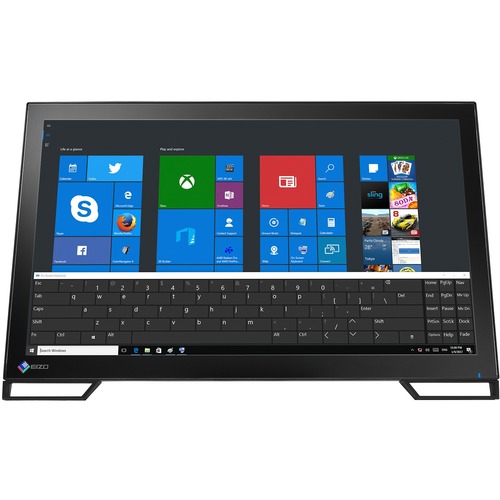

EIZO DuraVision FDF2382WT 23" Class LCD Touchscreen Monitor - 16:9 - 11 ms - 58.4 cm (23") Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - In-plane Switching (IPS) Technology - 16.7 Million Colours - 260 cd/m - LED Backlight - Speakers - DVI - USB - VGA - DisplayPort - Black - USB Hub

Our Product No :   47796

MPN Number :   FDF2382WT-BK

Manufacturer :  Eizo

Model No :   FDF2382WT

images

STOCK 17

General Information
Manufacturer EIZO
Manufacturer Part Number FDF2382WT-BK
Manufacturer Website Address http://www.eizo.co.uk
Brand Name EIZO
Product Line DuraVision
Product Model FDF2382WT
Product Name DuraVision FDF2382WT 23" Touch Panel Monitor
Marketing Information

Projected Capacitive Touch Panel

The DuraVision FDF2382WT features projected capacitive touch technology which is more durable and reliable compared to other touch technologies. The monitor accepts touch input from a bare finger or dedicated stylus.

Multitouch Interface

The screen can detect up to 10 simultaneous touches so you can easily operate a variety of applications in almost any environment. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.

Palm rejection minimum activation area is 2 x 2 cm.

Touch Detection Control

Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side.

Sensitivity Calibration

The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch reponse due to environmental factors and electromagenetic noise. This ensures that the screen maintains accurate touch interaction during use.

Stylus Compatibility

The monitor can be used with a touch stylus for smooth writing.

Fully Flat Design

The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling a breeze.

IPS Panel

The DuraVision FDF2382WT uses an LED-backlit IPS panel with wide viewing angles that minimize color shift and contrast changes when viewing the screen from the side. The surface of the panel is also coated with an anti-glare treatement for further clarity in bright ambient environments.

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The DuraVision FDF2382WT relieves eye fatigue by regulating brightness to make flicker unperceivable.

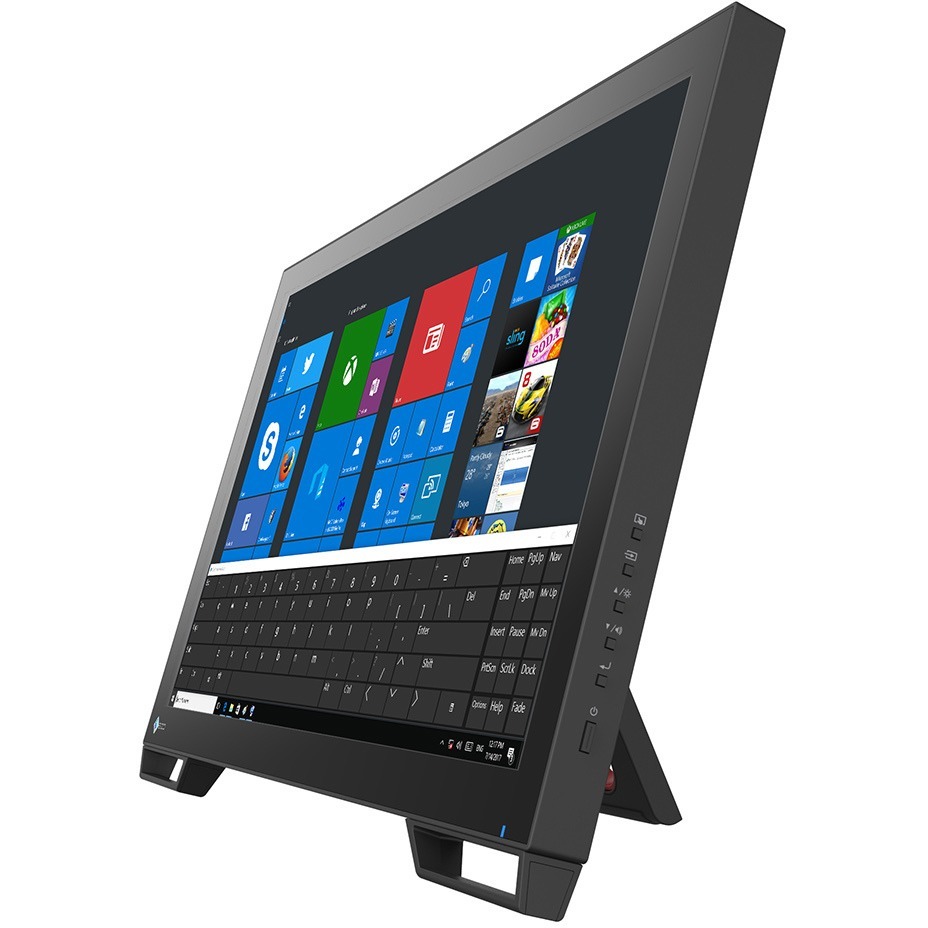

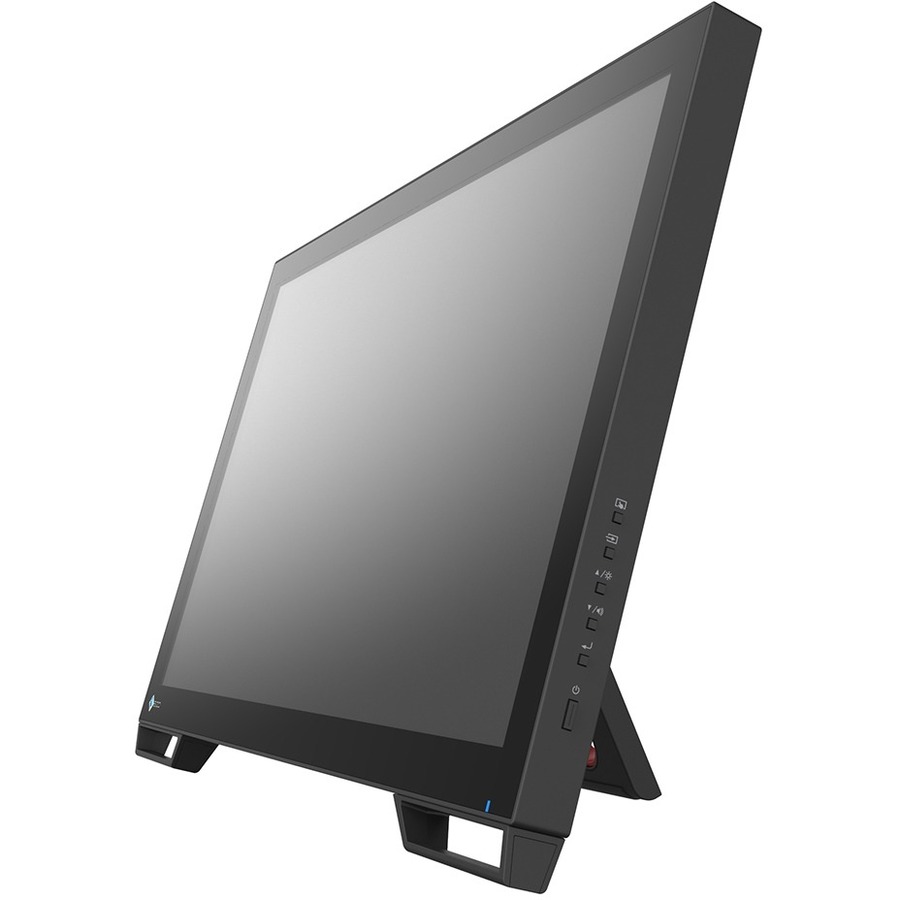

Reclining Stand

The equipped stand provides flexible positioning to allow the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.

Complete Connection

The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.

High Durability

The touch screen has a non-scratch surface made of reinforced glass with a hardness of 5H (Mohs scale), making it durable enough to withstand long-term use in a range of environments.

Long-Term Reliability

The DuraVision FDF2382WT is backed by a three year warranty which covers all components to ensure a long service life.

Product Type LCD Touchscreen Monitor
Technical Information
Screen Size Class 23"
Viewable Screen Size 58.4 cm (23")
Screen Mode Full HD
Panel Technology In-plane Switching (IPS) Technology
Response Time 11 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Placement Tabletop
Backlight Technology LED
HDCP Supported Yes
Features
  • sRGB
  • On-screen Display (OSD)
  • Touch Controls
  • Wide Viewing Angle
  • Anti-glare
  • Flicker-free
  • OverDrive
  • Power Indicator
Horizontal Frequency
  • 31 kHz to 64 kHz - DVI
  • 31 kHz to 68 kHz - DisplayPort
  • 31 kHz to 81 kHz - Analog
Vertical Frequency
  • 59 Hz to 61 Hz - DVI
  • 59 Hz to 61 Hz - DisplayPort
  • 55 Hz to 76 Hz
Stand Adjustments Tilt
Glass Hardness 5H
Video
Maximum Resolution 1920 x 1080
Colour Supported 16.7 Million Colours
Native Contrast Ratio 1,000:1
Brightness 260 cd/m²
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
DVI Yes
USB Yes
VGA Yes
DisplayPort Yes
Built-in Devices
Built-in Devices USB Hub
Physical Characteristics
Color Family Black
Product Color Black
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Height 339.2 mm
Width 556.7 mm
Depth 54 mm
Height with Stand 353.90 mm
Width with Stand 556.70 mm
Depth with Stand 401.30 mm
Weight (Approximate) 6 kg
Weight with Stand (Approximate) 6.60 kg
